Description

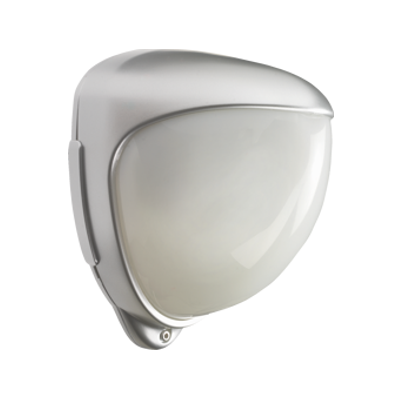

The BS8418 compliant D-TECT X detectors all feature quad PIR sensor modules, stylish IP65 fully tampered housings with a discreet internal antenna. Units accept 2 x 3 volt CR123 batteries, 500m RF transmission range on 868MHz and individual code for pairing to the receiver. The receiver (GJD392) can be linked in its base form to 4 detectors and this can then be expanded up to 16 detectors, with the use of the GJD393 4-way expansion module. Due to the number
- Transmission Range: 500m line of sight
- Detection Range: 30 x 30m
- Detector orientation: 180° pan & 90° tilt
- Mounting Height: Up to 6m – Optimum 3m
- Tamper Switches: Front & rear tamper switches, case open and removal from wall
- Pulse Count: 1 – 2
- Photocell: Dusk (2 Lux) to 24 hour
- Housing: High Impact ABS
- Protection Rating: IP65
